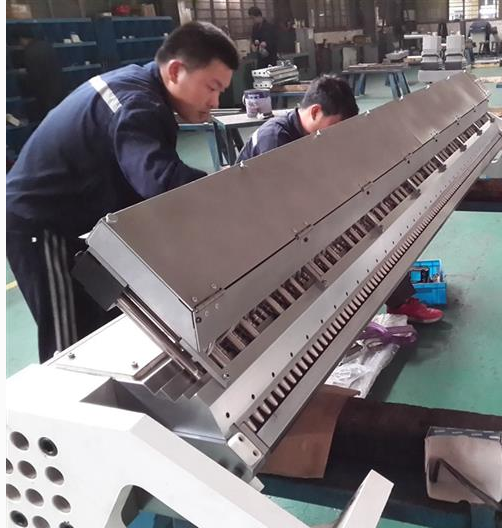

t-die extrusion lamination

Hangers with a flow t-die extrusion lamination, 90-degree flow bar, adjustable upper and lower lip thickness

The t-die extrusion lamination has a streamlined runner surface, two half-mold design, die disintegration, cleaning is simple and easy.

Mold body using high quality steel or imported alloy steel to extend the life of the mold.

The surface of the flow channel is all hard-chrome plated with an average thickness of 25μm ~ 50μm, and mirror-polished.

t-die extrusion lamination head fasteners using 12.9 high strength bolts.

Heating elements using high-quality, durable stainless steel heating rods, heating ring

Suitable for the production of 1-45mm thick plate, suitable for: PP, PVC, PE, PS, PC, ABS, PMMA and other raw materials!

Raw materials: PMMA, ABS can be customized according to customer needs

Mold steel and accessories: GB p20 or 5CrNiMo. Fasteners using 12.9 high strength bolts. Heating elements using high-quality, durable stainless steel heating rods, heating ring

Process: Polishing accuracy: Die lip surface polishing accuracy 0.03-0.04 (um), other surface polishing accuracy of 0.04-0.05 (um).

Plating: Die flow hard chrome plating, thickness 0.03-0.04 (um), hardness 60-65 Rockwellc., The outer surface of chrome layer thickness 0.01-0.02mm.

Shipping and packing: Domestic free shipping, wooden box packaging.

Quality Assurance: In line with the actual use requirements, normal production quality one year warranty.

Features: Two, three or more different colors of raw materials, through the co-extrusion dispenser or can produce uniform thickness. Layered sheet die, sheet or cast film products.
